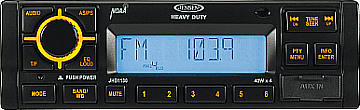

When you purchase a radio from BRS not only do you get a great semi truck radio you get a FREE professionally wired truck radio harness to connect it to your truck as well as a set of radio removal keys to remove that old radio. We will also hold you hand by being there by phone with a TEXTME connection for any questions you might have during or after the install. How great is that !
If you are looking for the factory radio harness for a new OEM radio like a Delphi and new Panasonic radios. This will plug into the back of the radio and give you pin out and color instructions for the OEM. This harness is the one that plugs into this example
Have your own radio you want to install in your Peterbilt. Looking for a Peterbilt radio harness then you have found the right page. Toggle thru the pages and find the one that matches your Year and Model. All the harnesses are color coded with the color ID printed on the outside of the package. We made it even easier by the fact the color will match all popular radios so you are basically matching colors to colors. The selection is up to date and will fit this years models as well 2018+ Need help finding the right one. A fast way is to text us the Year and Model of you truck to 336 528 9198 and just ask. You can also text us a pic of the harness we need to match.
Don't feel comfortable wiring you own radio harness. We offer a service that will do it for you. Follow the link under SERVICES and we will do it professionally for you.
2 Versions available Purchase a harness version that includes a set of radio removal keys and save money as a combo. When you start your install you want have to search for the radio keys before you can start. Purchase the PLUS version to insure you have the keys.
Need to remove your old radio for replacement? Does your old radio have 2 small holes on each side of the face? We sell the removal tool to release the factory spring retainers that hold it in place. Inserting this tool on both sides will safely and easily allow extraction. You can use other means but this is what this tool is for. Works every time. SAVE 3.00 when you purchase your keys with a harness. Look for the PLUS package
OEM HARNESS PLUGS INTO BACK OF THE RADIO
Sold as a pair
NOTE: To insure proper plug application it is advised to remove your existing radio and examine the main truck harness past the one that is plugged into the radio itself. This is where you will detach and plug in a mating plug like the ones above. This helps insure a match, saving time and money
Conventional W/Prem Sound From 4/05 to present Model 387 Built From 9/06 to present Model 387 W/Prem Sound Built From 9/06 to present
UPDATE: This harness is alsao used on 2001 and up Concert Class Petes as well.
All Medium Duty COE and Conventional (330), COE Models Built After 10/86, Conventional Models Built 10/86 to 6/05
Text us your truck Year, Make and Model and we can tell you which harness to use 336 528 9198
SmartNav + Ant Adpt.
SmartNav + Ant Adpt. PLUS

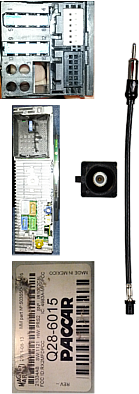

SmartNav If you own a Peterbilt truck with a SmartNav system and want to change out the radio here it is. Doing this will allow you to have music on the same speakers but the monitor will no longer work. Leave monitor as a hole filler. Unplugged from the factory radio it is dead. NOTE: THIS HARNESS WILL NOT WORK ON NEWER SMART NAV SYSTEMS, COMPARE REAR VIEW OF YOUR RADIO TO THE PIC ABOVE. NEWER SMART NAV RADIOS USE THE BT ISO DIN HARNESS. If your system looks like this then you are good with this harness. We have packaged the SmartNav harness with the antenna adaptor because you will need it to have reception on your radio.
BT ISO DINharness also found on Smart Nav Plus trucks
Need to remove your old radio for replacement? Does your old radio have 2 small holes on each side of the face? We sell the removal tool to release the factory spring retainers that hold it in place. Inserting this tool on both sides will safely and easily allow extraction. You can use other means but this is what this tool is for. Works every time.
SAVE 3.00 when you purchase your keys with a harness. Look for the PLUS package
Installing a radio into a vehicle without a radio harness plug is not impossible. A radio tech is able to do this with proper test equipment. But for the DIY'er the task is not so simple. Need a harness for a farm tractor radio. Want a plug and play radio for that Kubota or John Deere. Visit our sister site for a huge selection of stereos and harnesses to make the install PLUG & PLAY easy.
